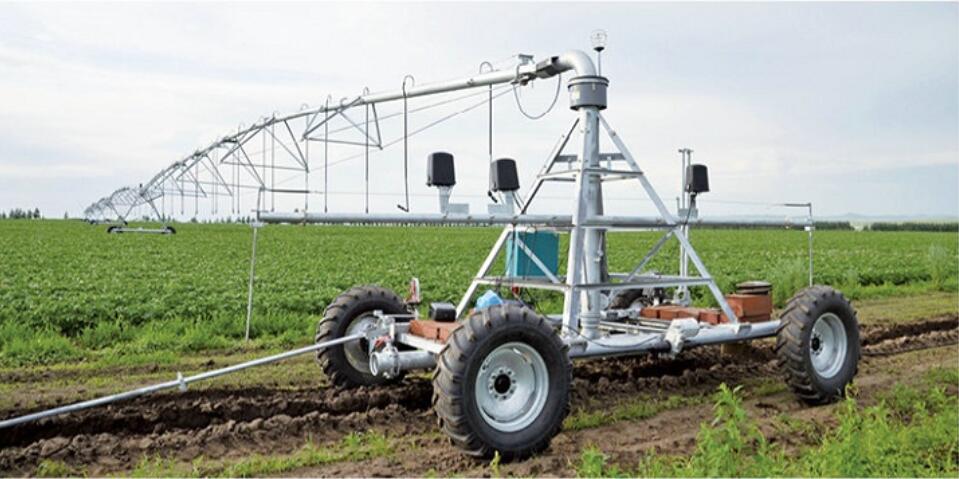

Lateral rotary irrigation machine with 4 wheel

structure feature:

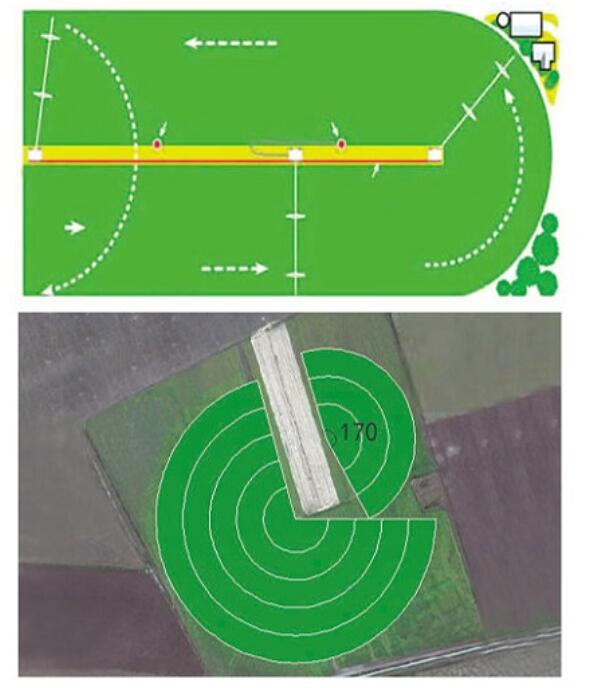

It is a kind of universal irrigation machine integrating the center pivot and the lateral move, which can be used for both the reciprocating movement and the rotary function of the center pivot machine. To maximize the effective irrigation utilization rate of land, and promote the concept of irrigation to a higher level.

folding spans

If field obstacles encountered in the irrigation process, folding span is an ideal solution. The folding span body can be installed in any span body according to the needs of the terrain. When obstacles encountered, the span body can be folded. After the machine avoids obstacles, irrigation can be continued. Its flexibility, can provide work efficiency, increase irrigation area.

Corner boom irrigation

Corner boom irrigation is a kind of irrigation method for large irrigation machine, which effect irrigation at the dead corner. The corner boom is a 61.3-meter span body and a 30-meter overhang pipe and a spray gun added at the end of the body, and the actual length of irrigation can reach more than 130 meters. GPS technology is used to control its operation. When the machine walks to the corner, the corner boom is extended to spray irrigation on the dead corner. After the completion of irrigation, the corner boom was retracted, and the main span of the sprinkler was irrigated normally. The technical content of the corner boom system is relatively high, which can increase the irrigated area and provide the land utilization rate.
